TOTAL BUILDING PERFORMANCE AND DIAGNOSTICS

Visuals

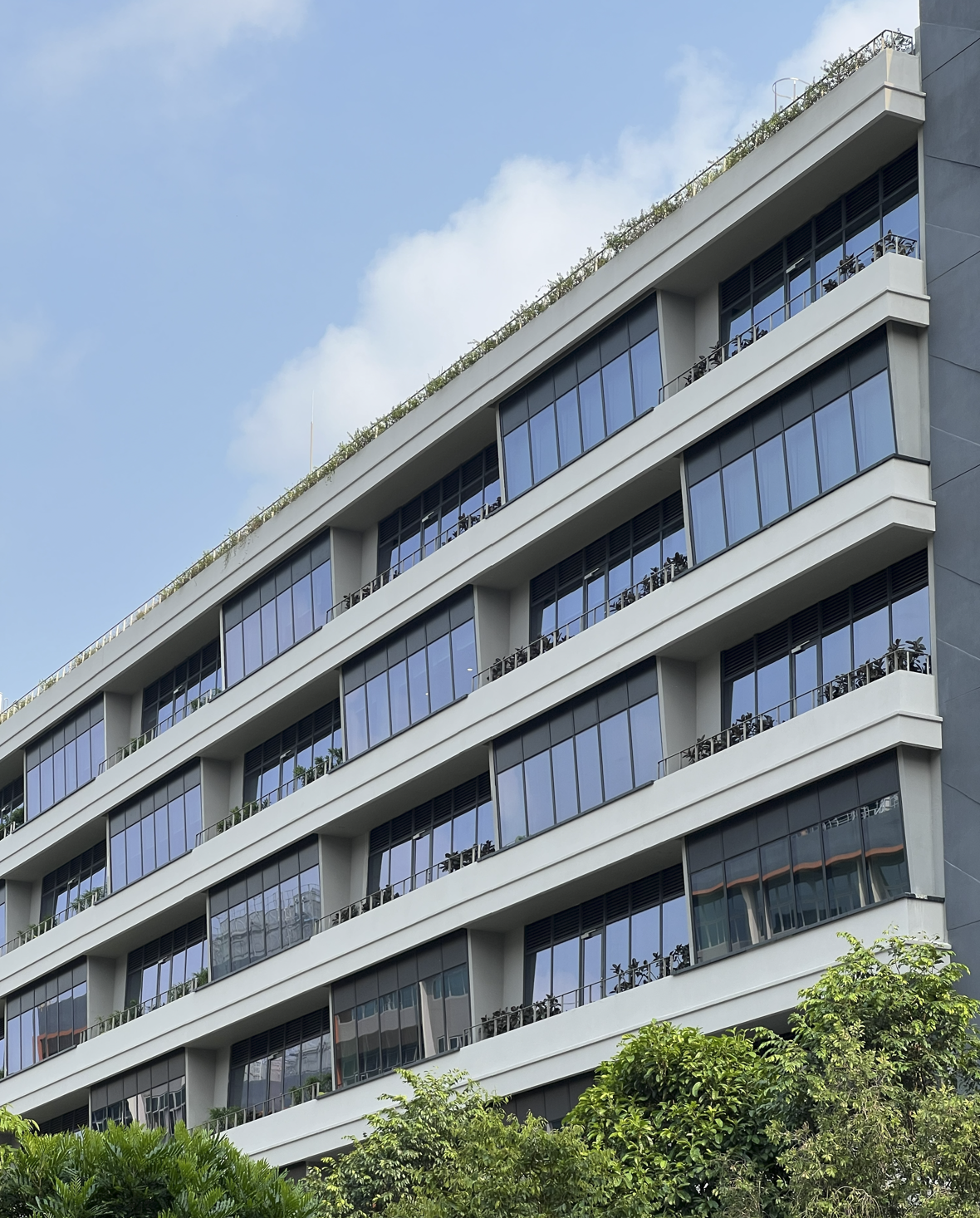

Woodlands Hospital integrates nature, daylight, artwork and wayfinding features to create a visually engaging environment that supports healing, comfort and well-being

Measured Daylight & Illuminance

Spot illuminance measurements were taken across 20 indoor, outdoor, shaded and window-adjacent locations during a single-morning site visit on 28 Aug 2026. Average illuminance across the 20 measurement records ranged from 49.7 lx at the Learning Space Lobby to 15,797 lx in direct outdoor sunlight.

Qualitative Visual Observations

Qualitatively, glare was more noticeable in areas exposed to direct sunlight and at window-adjacent locations with strong daylight penetration, while shaded and deeper internal spaces generally experienced less apparent glare. These observations were based on the visual walkthrough rather than occupant surveys or instrument-based glare assessment. No direct glare metric, such as Daylight Glare Probability (DGP), was measured on site.

Indoor by space

49.7–2,083.3 lx

5 locations, Lobby → 5F window

Direct vs shaded

420.5–15,797 lx

≈37× contrast outdoors

Orientation spread

1,670–3,739 lx

West → East, 5F, single morning

Window condition

771 vs 2,083 lx

Slanted vs vertical window

Data source: measured on site by Group 5 on 28 August 2026, 9am to 11am.

Learning Space Lobby – 1F

49.7 lx

5F Corridor

267 lx

5F Waiting Area

325.7 lx

5F Indoor – Away from Window

939.6 lx

5F Vertical Window Area

2,083.3 lx

Illuminance ranged from 49.7 lx at the Learning Space Lobby to 2,083.3 lx at the Level 5 Vertical Window Area — window proximity tracked brightness more closely than floor level.

Data source: measured on site by Group 5 on 28 August 2026, 9am to 11am.

Visual performance prototype

Interactive Daylight Measurement Map

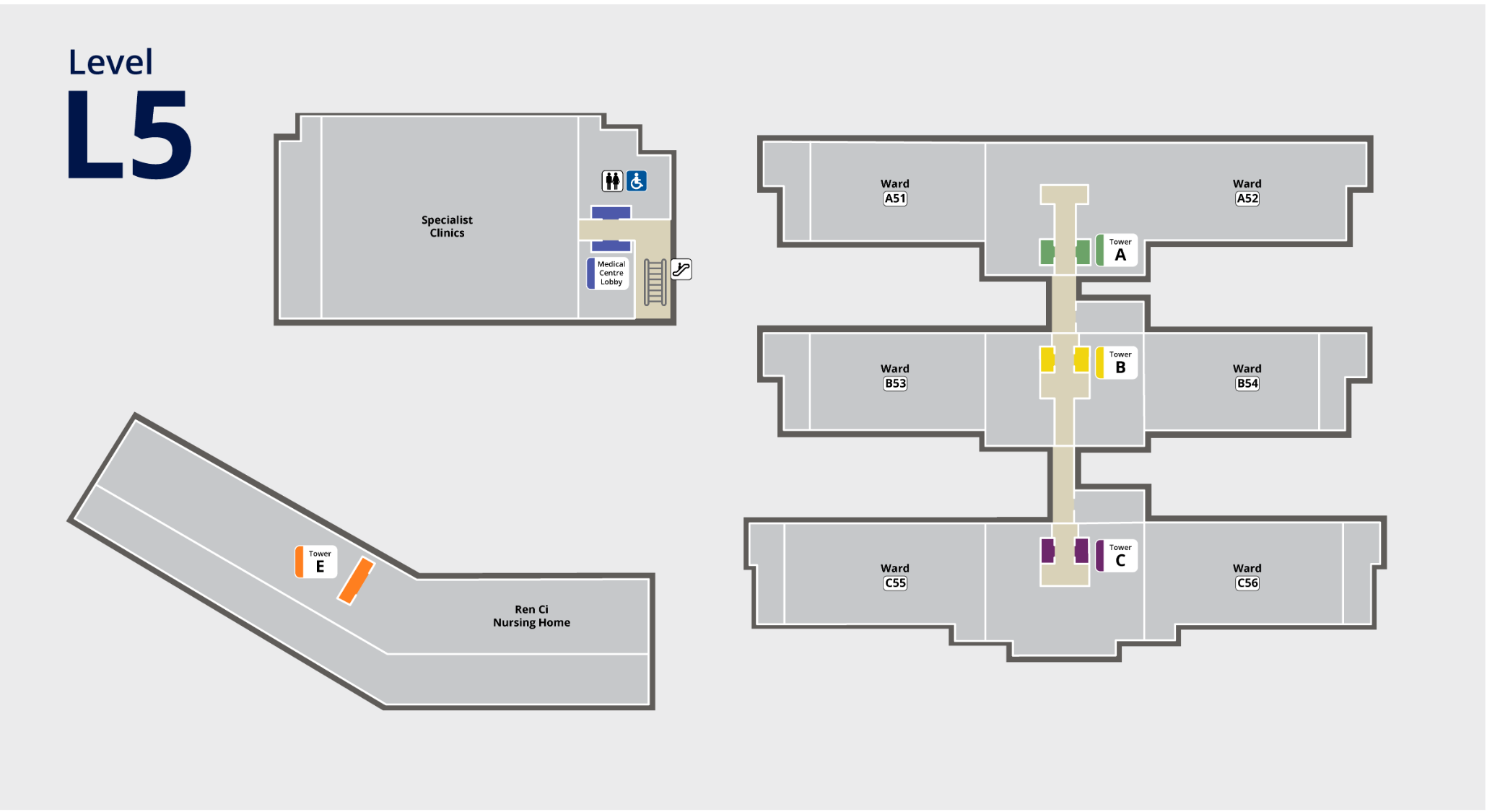

Twenty illuminance measurement points were recorded during the site visit. Select a map and click a numbered marker to view its photograph and average illuminance. Marker positions have been reviewed by the group.

Level 5 · Medical Centre (enlarged)

Group-reviewed positions · click to explore

N↑

Base plan obtained from publicly available online sources. Interactive measurement markers were added with AI-assisted generation to improve readability; marker positions are approximate.

Data source: measured on site by Group 5 on 28 August 2026, 9am to 11am.

Design context: daylight and shading

The project’s Green Mark information describes a design approach that places offices and clinics along the building perimeter to bring daylight into work spaces. It also says window position and orientation, selected glazing, and facade shading were intended to admit daylight while limiting heat gain. These are documented design strategies, not results of our site measurements.

Source: Woodlands Health Campus, Green Mark Info-Portal project write-up, PDF pp. 8–10. The 20 illuminance readings above are Group 5’s own measurements from 28 Aug 2026.

Location review

The 20 measurement values come from the workbook. The floor plans are the supplied Woodlands Hospital maps. Tower B TIM Café points appear on the campus view; the Level 1 and Level 5 plans focus on the Medical Centre. Marker positions are group-reviewed approximations, not surveyed coordinates. The campus overview has south at the top; the Level 1 and Level 5 plans retain north at the top.

Base maps: Woodlands Hospital visitor maps supplied by the group. Measurement data and photographs: Group 5, 28 Aug 2026.

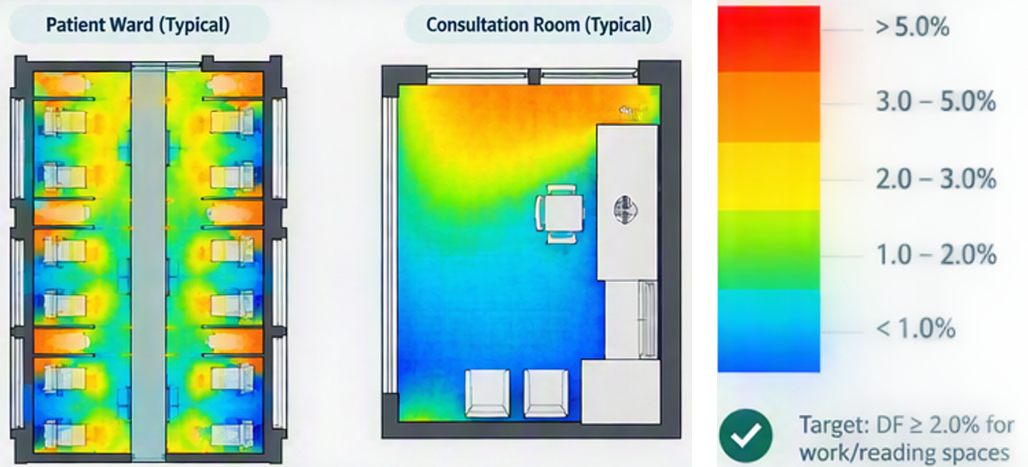

Daylight factor plans for a typical patient ward and consultation room with percentage legend — Daylight factor distribution in a typical patient ward and consultation room, with a target of DF 2.0 per cent or more for work and reading spaces.Image: AI-assisted illustration of daylight factor distribution for typical wards; indicative only, not a daylight simulation or measured result.

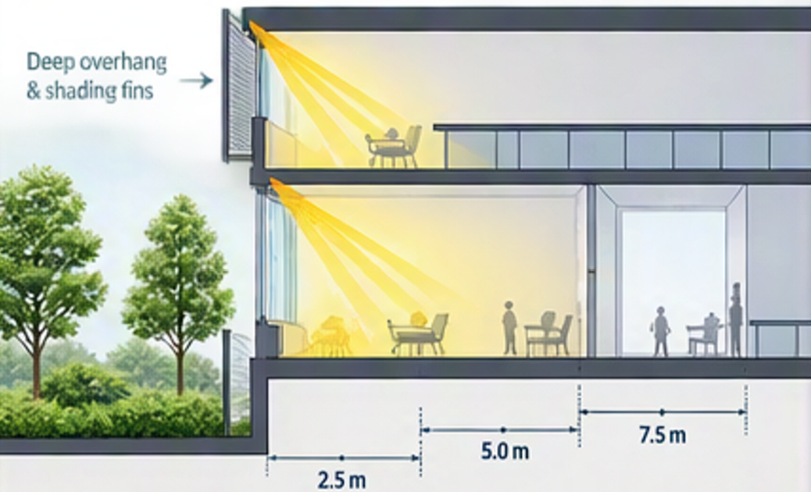

Section through a typical ward showing deep overhang, shading fins and daylight penetration depths — Daylight penetration depth (typical ward)Image: AI-assisted illustration of daylight penetration depth for typical wards; indicative only, not a daylight simulation or measured result.

Daylight observed on site

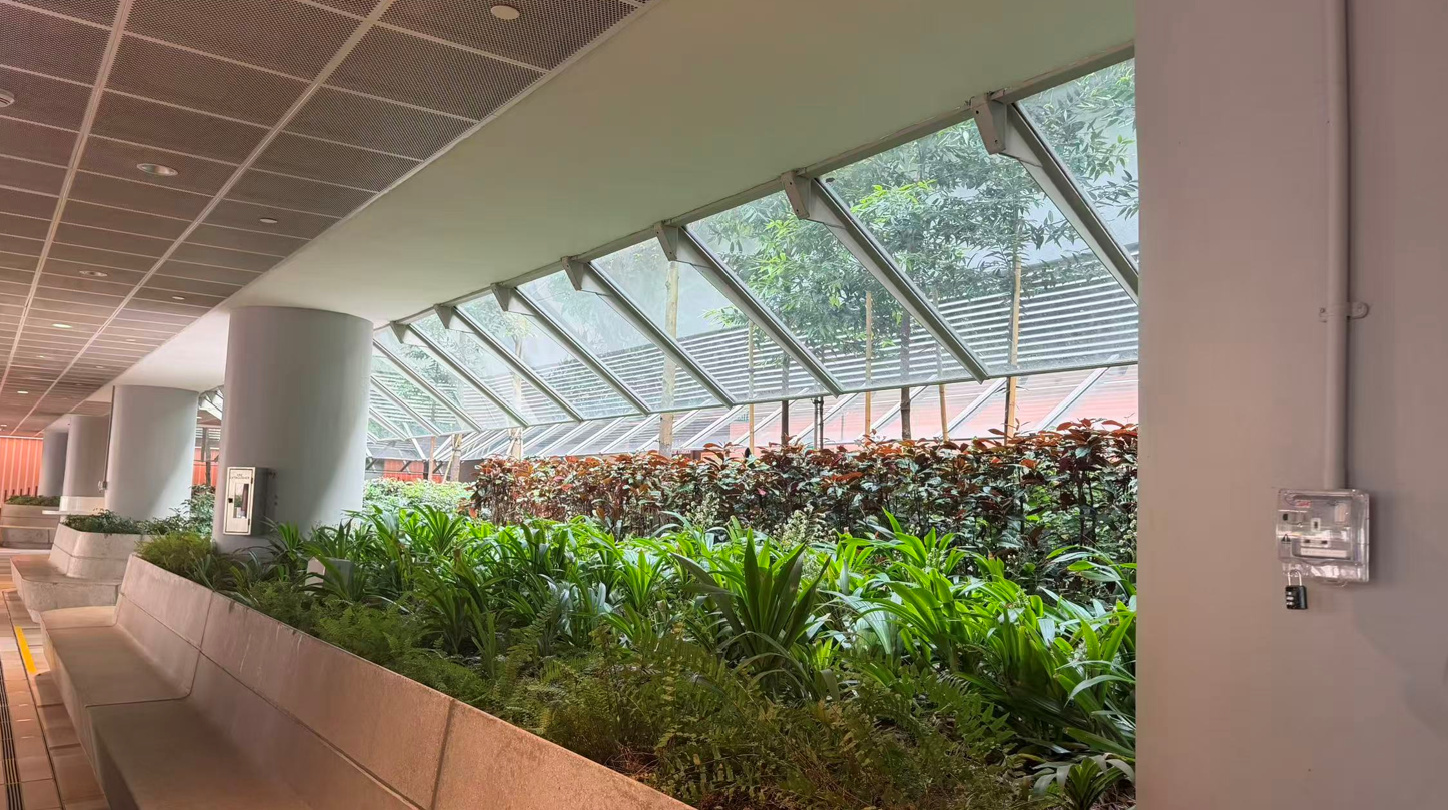

Indoor garden with planting beds below a glazed roof, bringing daylight and greenery into the building — Glazed roof over the indoor garden

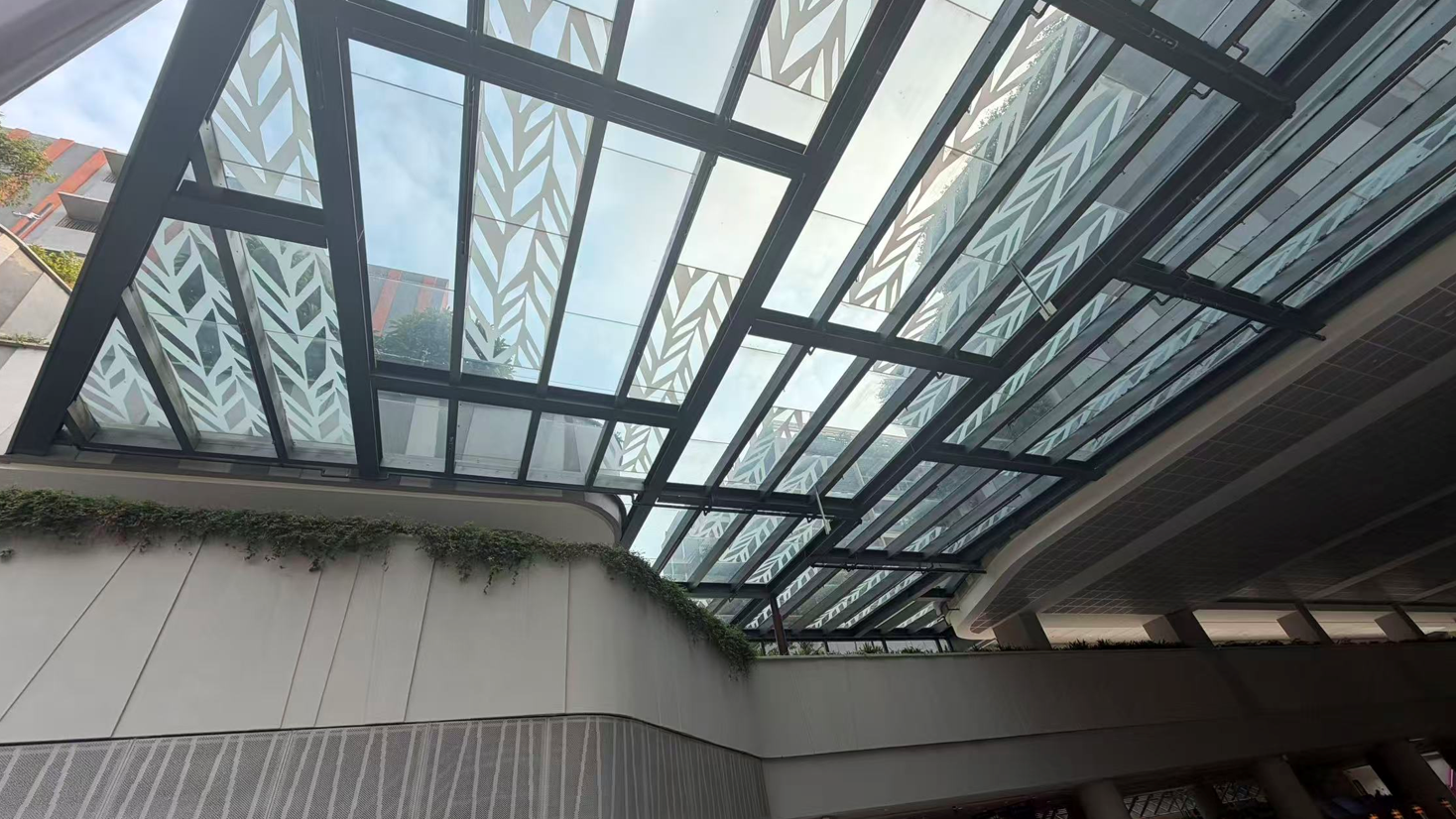

Patterned glazed canopy seen from below, with planting spilling over the edge of the deck — Patterned canopy filtering direct sun

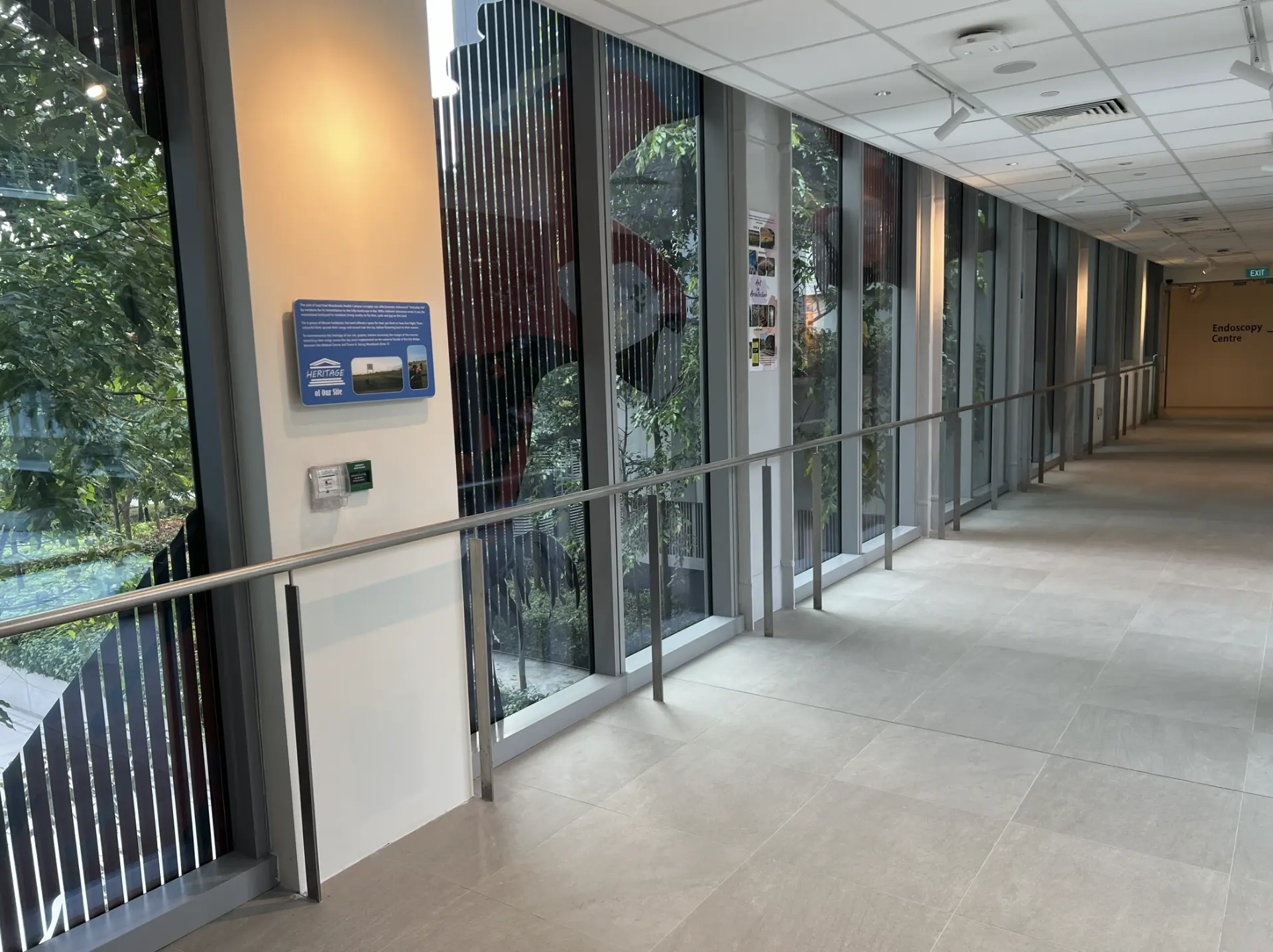

Corridor lined with full-height windows overlooking planted courtyards and the Endoscopy Centre — Full-height corridor glazing

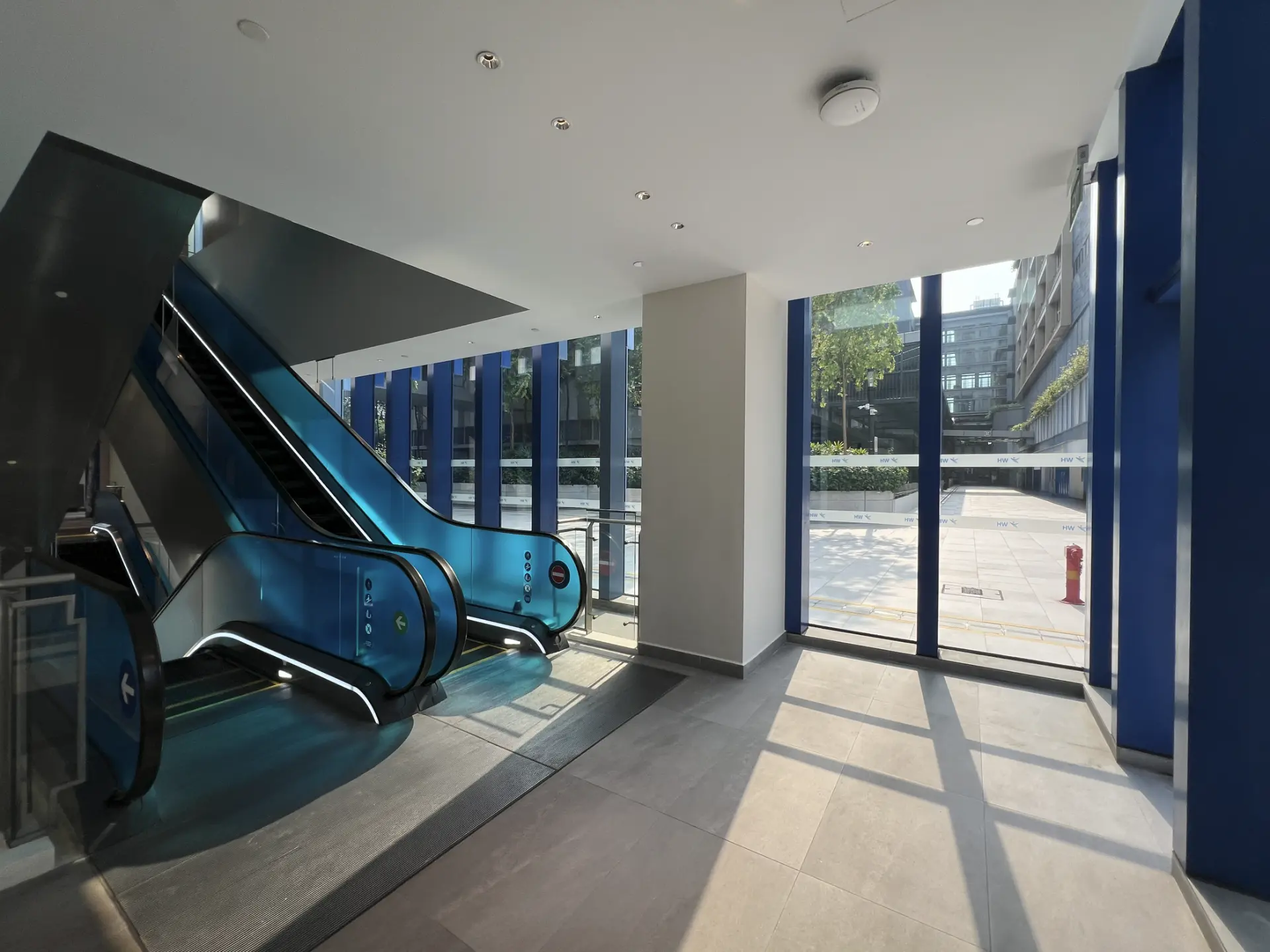

Escalator hall with daylight streaming through tall glazing and casting shadows across the floor — Daylit escalator hall

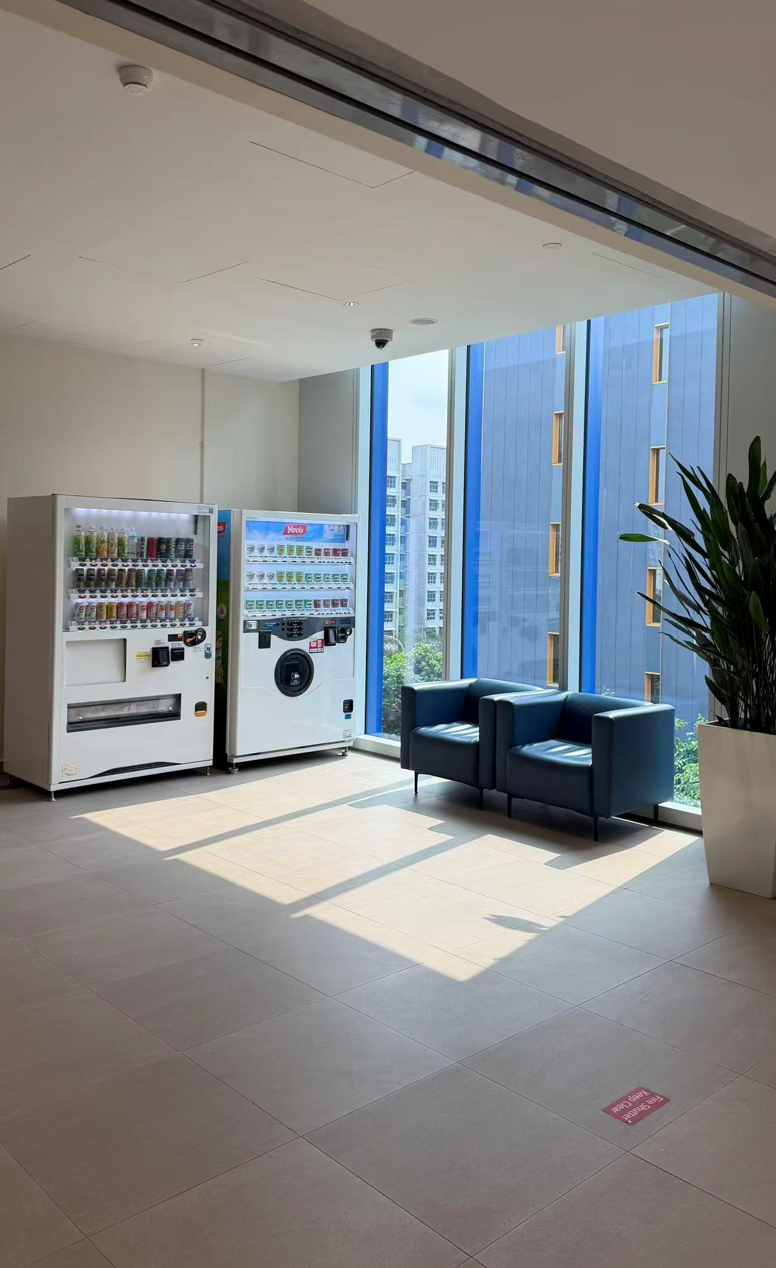

Waiting lounge beside full-height windows, with sunlight falling in patches across the floor — WAITING LOUNGE

Photos by Group 5 during the site visit on 28 August 2026.

Overall evaluation

Overall, illuminance varied considerably across the surveyed locations. Window-adjacent and perimeter spaces generally recorded higher values, while some deeper internal spaces recorded much lower levels. The shading comparison also showed a large difference between direct sunlight and shaded outdoor conditions. Because all measurements were collected during a single morning visit and sequentially rather than simultaneously, the results should be interpreted as a snapshot of observed conditions rather than a complete annual daylight assessment.
